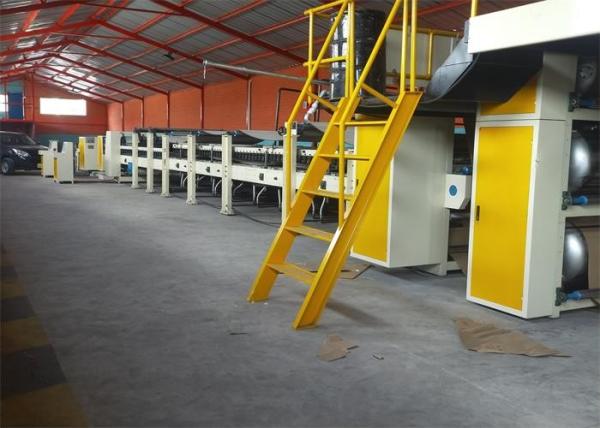

5 Ply Steam Heating Corrugated Cardboard Production Line Automatic

Our company specialize in produce 3,5,7ply corrugated cardboard production line, we have width from 1400mm-2500mm is available. Different speed and grade depend on different users, have Mechainical and fully computer control production line.

Main equippment list
1. mill roll stand (mechanical and hydraulic shaftless is available)
2. splicer(option, it is used for high speed production line)
3. single facer
4. Preheater
5. Multi-preheater
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)
Main technology parameter

Model	WJ120-1800
Effective width	1800mm
Design speed	120m/min
Working speed	0-100m/min
Steam pressure and consumption	Pressure: 1-1.3Mpa consumption: 2500-3200kg/h
Air pressure and consumption	Pressure: 0.8-1.0Mpa consumption: 1.3m³/min
Total power	About 200kw
Total length	About 80m(depend on base drawing)
Dimension	About 80m×4.3m× 4.5 m (L×W×H)
Equipment flow: according the customers' workshop to installation the machine.
