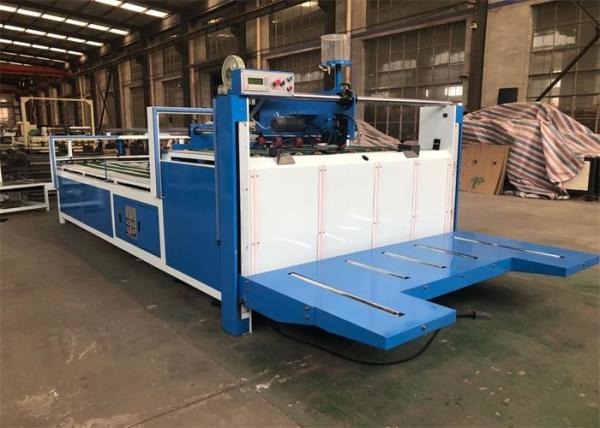

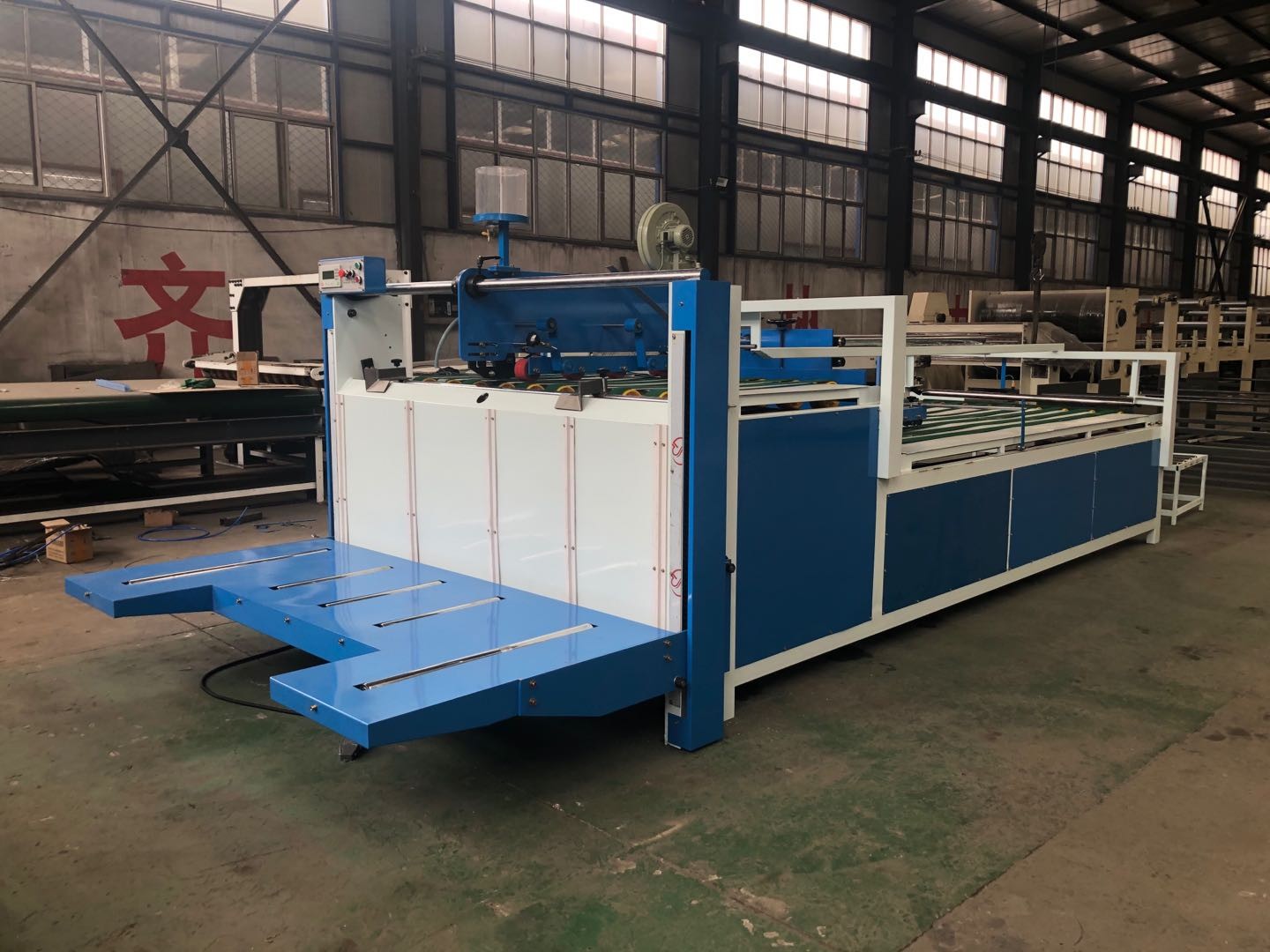

    Semi Automatic Carton Box Folder Gluer Machine

    Ask Lasest Price
    Brand Name : xinglong
    Model Number : ZXJ2600
    Certification : CE
    Price : Negotation
    Supply Ability : 10sets/month
    Delivery Time : 10-30days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Semi Automatic Carton Box Folder Gluer Machine

    Semi Automatic Carton Box Folder Gluer Machine


    Technology Parameter

    Max size( length+ width)2460mm
    Max size(width+ height)1500mm
    Min size( length+ width)340mm
    Min size( width+ height)240mm
    Motor power4kw
    The length of Machine4500nn
    The Width of Machine2100mm
    The weight of Machine1200kg
    Machine speed40
    Dimension(mm) length*width*height4000*2000*1900
    Main parts list
    ItemSpecificationQty(set)Original/brand
    Main motor0.75KW1Huicheng
    Press motor0.4KW1Huicheng
    Glue motor120W 250W2Oute
    Blow2.2KW2Shanghai
    BearingSKF
    LM shaftShunyang, Tianjin
    BeltXibeike

    Function and Characteristics:


    Folder gluer is the last process equipment of carton making, it is used to produce 3 and 5-layer corrugated cartons (for 7ply cartons is customized). Machine with high efficiency, glue consumption is low, product cost is 10times less than stitching. Produce carton beautiful and stable. Easy operation, save power and labor, running smoothly. It is a idea machine to make cartons.

    Structure of machine


    1. Feed table

    Photoelectric control the height of table, reduce labor and improve work efficiency.


    2. Press correction

    After gluing go into press part, adhesion smooth and firm.

    Equipped automatic correction device to enure the carton size is correctly, and effectively avoid knife and fork problem.

    Equipped Fan to dry the glue fast.

    Automatic counter with sensor, when reaching to the set height, send out cartons automatically.


    3. Horizontal Output

    Convey out product carton automatically, easy for bundling



    Semi Automatic Carton Box Folder Gluer MachineSemi Automatic Carton Box Folder Gluer MachineSemi Automatic Carton Box Folder Gluer Machine
