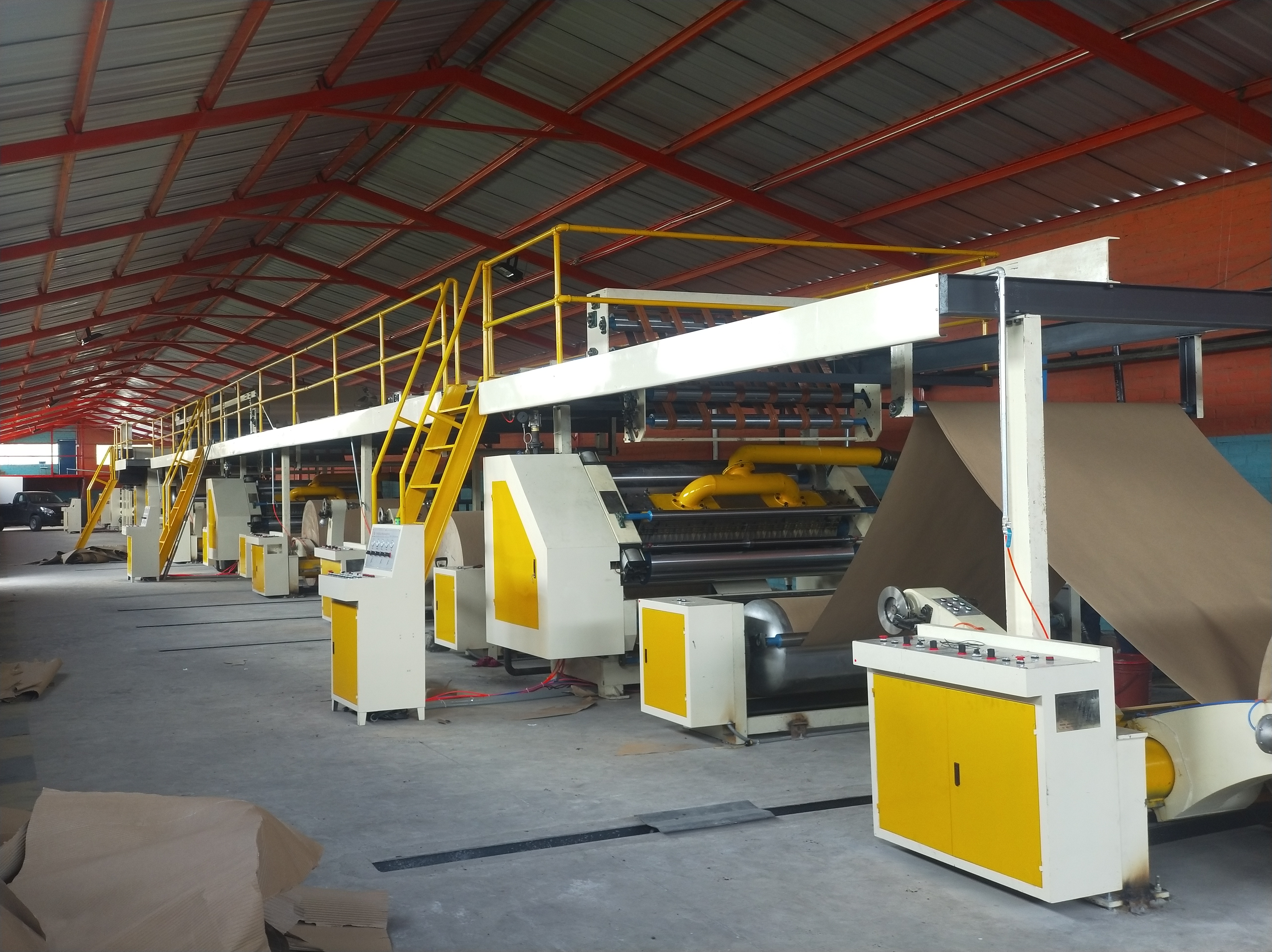

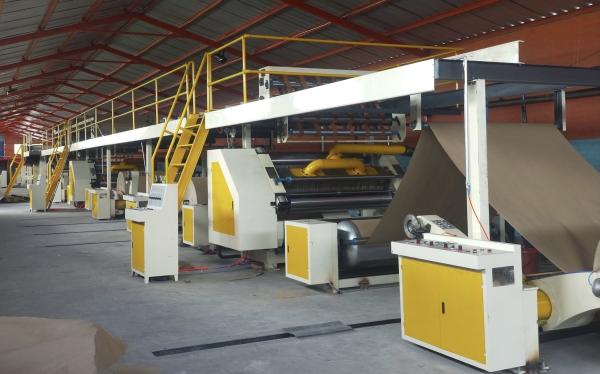

High speed 5ply corrugated cardboard production line
Product detail
Corrugated cardboard production line is the professional equipment
for producing corrugated cardboard .The production line consists of
the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer
machine ,Conveyor bridge , Gluing Machine, Double facer machine ,
Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System
,Air compression system and Glue Making System and so on. We
produced different grade 3,5,7 ply corrugated production line with
different fitting. On the base of understanding the requirements of
the customers and the advanced skills at home and abroad, our
company has developed and designed these production lines with the
speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute
production line can satisfy different customers.
Main equippment list
| No. | Machine name | Remarks |
| 1 | Mill roll stand | Full hydraulic control, pneumatic control brake, inner expansion
chuck, hydraulic station adopt Taiwan product, multiple point
tension control. |
| 2 | Railing and track | Include railing and track. |
| 3 | Pre-heater | Diameter 1000mm, electric adjust wrapping angle |
| 4 | Single facer | Corrugating roll diameter 360mm, adopt 48CrMo alloy steel, main
bearing adopt Japan NSK brand,gluing part could level move out from
machine,gluing holder adopt stainless steel,according to the speed
PLC automatic adjust the glue thickness. |
| 5 | Pre-conditioner | Diameter 1000mm, electric adjust wrapping angle |
| 6 | Single layer bridge conveyer | Frequency adjust wind adsorption, electric correct error device. |
| 7 | Pre-heater | Diameter 1000mm, electric adjust wrapping angle |
| 8 | Gluing machine | Gluing roll diameter 318mm,main beating adopt Japan NSK
brand,stainless steel glue plate, according to the speed PLC
automatic adjust the glue thickness. |
| 9 | Double facer | Heating plants 600mm×20sets,surface do treated and chromed,
pneumatic tension, hydraulic lift-down, include cotton belt |
| 10 | Main drive | Independent reducer box, gimbal driving. |
| 11 | NC slitter scorer | Changing order time 8-10 seconds,computer type, 6 blade 10 scorer. |
| 12 | NC cutoff | adopt Germany servo driver |
| 13 | Gantry Stacker | Belt level output,transmit two parts. |
| 14 | Glue making system | Include main pot 1 set, carrier pot 1 set, and storage pot 2set,
include glue station pump, single facer glue pump and gluing
machine glue pump. Circle supply glue, pipeline provided by
customer |
| 15 | Pneumatic system | Include steam-water separator and gas storage pot, pipeline and
air-compressor supply by customer. |
| 16 | Electric system | Whole line main motor frequency adjust speed, electric part adopt
ABB or Schneider product, Motor and reducer adopts Taiwan Teco
product, imported transducer. |
| 17 | Steam system | Adopt imported brand valve and drain valve, pipeline provided by
customer
|
