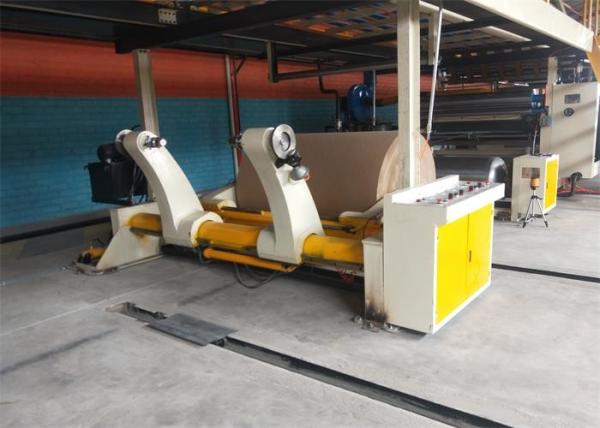

Stainless Steel Corrugated Cardboard Production Line Hydraulic Mill Roll Stand

Technical Parameters

1. Base paper diameter:Ø400mm-Ø1500mm

2. Max. load: 3000kg

3. Main shaft dia. : Ø 215mm

Hydraulic system parameters

1. Working pressure(MPa): 12－16 MPa

2. Hydraulic cylinder scope(swing): Ø 100mm×460mm

3. Hydraulic cylinder dia.(clamp):Ø 63mm×720mm

Structure and Features

1. Symmetrical structure can install two bundles base paper, to change paper with non-stop.

2. Adopt hydraulic drive, can make the base paper lift, clamp, loosen, move and center.

3. Head of paper clamping part with mechanical expansion design.

4. Tension control adopt pneumatic brake, manual control and also can be on-line controlled together with paper receiving part.

Raw material and Origin

1. Principal axis of holder and arm lock: high quality seamless steel pipe Origin: Chengdu

2. Wallboard of two sides:Q235A welded sheets Origin: Handan

3. Arm lock: HT200 casting Origin: Hebei

4. Electric elements: CHINT/Schneider

5. Girder connected box iron: Tangshan
