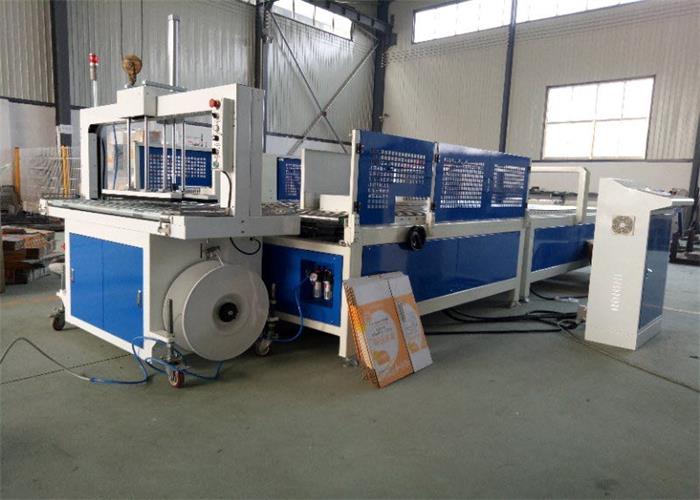

Automaitc PP Belt carton box strapping machine Bundle Carton Tying Machine

1. Fully automatic PP belt packaging assembly line part configuration: total power of packaging assembly line (including steering machine, packing machine, pressurized power baler) : 3KW;

2. Power supply: three-phase five-wire AC380V(1+10%) 50Hz;Gathering box machine (L1880 W2050 H1360);

3. Strapping machine (L1580 W670 H2000)；

4. Working ability: 9-18 packages/min;

5. Working environment: relative humidity less than or equal to 90%, temperature 0-40 ℃, noise less than or equal to 75dB (A);

Belt width 5mm and 9mm optional;Specification of tape reel: inner diameter of paper core with ring 200mm-210mm, outer diameter of ring 400-450mm, width of ring 175-190mm;

• Bonding method: thermal fusion;
• Bonding method: bottom bonding, bonding surface greater than or equal to 90%, bonding position deviation less than or equal to 2mm;Binding tightness: 0-45kg;
• Air source pressure: 0.5-0.8mpa;Roller material: stainless steel;Drum diameter: 50mm, wall thickness: 1.2-1.5mm;
• Conveying speed: 0-50m/min;

※ Main parts Brand list
