    High Speed Corrugated Carton Box 4 Colors Printing Slotting Machine

    Ask Lasest Price
    Brand Name : xinglong
    Model Number : XL-YJ
    Certification : CE
    Price : Negotation
    Payment Terms : T/T, L/C, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 5sets/month
    Delivery Time : 20-50days
    • Product Details
    • Company Profile

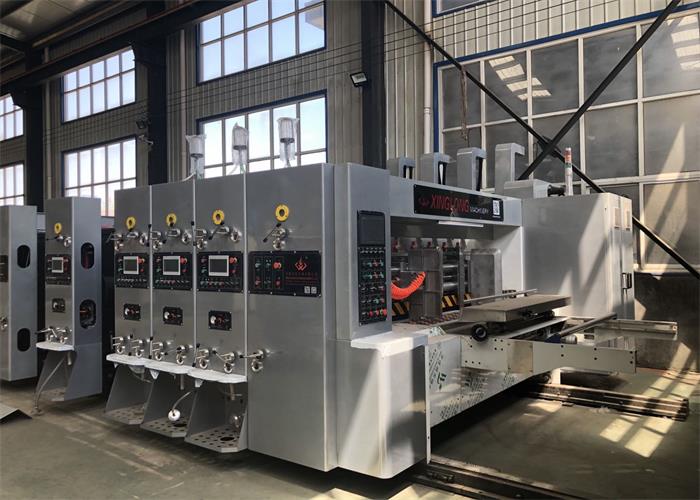

    High Speed Corrugated Carton Box 4 Colors Printing Slotting Machine

    High Speed Corrugated Carton Box 4 Colors Printing Slotting Machine


    Performance and Characteristics

    • The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
    • Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
    • All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
    • Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
    • The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
    • The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
    • Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)
    • The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
    • Main motor is VFD, working stability, low power consumption.

    Main Technology parameters:

    ModelYJ250-1022YJ220-1224YJ200-1426
    Machine inside width (mm)240026002800
    Max feeding paper size(mm)1000*22001200*24001400*2600
    Max effective printing size(mm)1000*20001200*22001400*2400
    Min coverage size(mm)400*600400*600mm400*600
    Design speed(pcs/min)250220pcs/min200
    Working speed(pcs/min)210-230180-200pcs/min160-180
    Standard Thickness of printing plate6mm6mm6mm
    Printing precision±0.5mm±0.5mm±0.5mm
    Thickness of cardboard1.2-9mm1.2-9mm1.2-9mm
    Wall thickness50mm50mm50mm
    Main motor powerAbout 18kwAbout 18kw

    About 18kw
