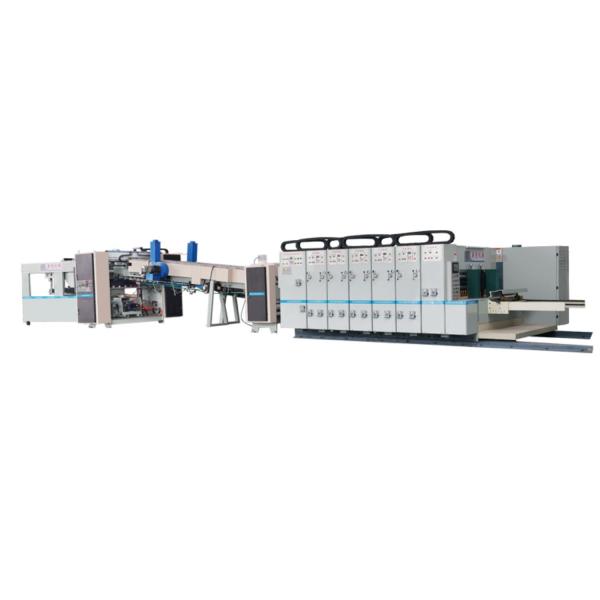

Carton Printing Slotting Die Cutting Machine Folding Gluing Strapping Inline

Automatic high speed printing slotting die cutting folding gluing carton production line

Functions and features:

1. This machine can automatically complete the functions of cardboard feeding, printing, billet forming, folding, box counting, stacking and binding at one time. It saves operators and is a high-speed, efficient and low-cost carton production equipment.

2. The whole machine's electrical appliances and computer software adopt international famous brands (Schneider, Delta) with stable and reliable quality, and adopt man-machine interface, computer order management (Beijing Kunlun Tongzhou MCGS color touch screen), easy operation, faster order exchange (multiple orders can be saved).

3. High quality steel, tempering and tempering are used for the whole machine shaft and roll; lapping, high precision computer dynamic balance correction, hard chromium plating on the surface.

4. The transmission gears of the whole machine are all made of 20CrMnTi alloy steel, carburized and quenched, with hardness HRC58-62. After grinding, the 6-level accuracy ensures the high accuracy of color matching for long-term use.

5. The whole process of vacuum adsorption feeding is adopted to make the feeding more stable.

6. Equipped with scraper system, the printing effect is better.

7. Optional light and drying groups.

8. Spray lubrication is used in the lubrication system of the whole machine.

9. The main engine adopts frequency conversion control (Delta), which can start and run more smoothly and save energy.

Main Technical parameter	UNIT	480	405	300
MAX.Machine speed	pieces/min	120	150	200
Economic machine speed	pieces/min	100	120	180
Max.cardboard size	mm	1450*2500	1200*2500	900*1900
Skip feed thickness	mm	1450*2600	1200*2600	900*2000
Printing precision	mm	1600-1900*2600	1400*2600	1200*2000
Standard thickness of printing plate	mm	±0.5	±0.5	±0.5
Slotting precision	mm	3-6	3-6	3-6
Main motor frequency conversion POWER	kw	15-30	15-30	15-30

ZXJ-1000 Folder Gluer inline

ZXJ-1000 carton folder gluer is specially designed and manufactured for inline with printing, slotting, folding, gluing and stacking, it features automatic conveying, glue applying, folding, with multi-stages auto control. Adopt PLC control, touch screen interface, pre-storage and management of orders, Its high-speed production capacity, fast order-changing and good stability can meet the short lead times required for our carton customers.

Model	ZXJ-1450
Max design speed	200pcs/min
Max sheet size(mm)	1450*2400
Min. sheet size(mm)	350*750mm
Suitable for cardboard	3 ply , 5 ply corrugated cardboard
Belts	Polyvinyl acetate emulsion PVA
