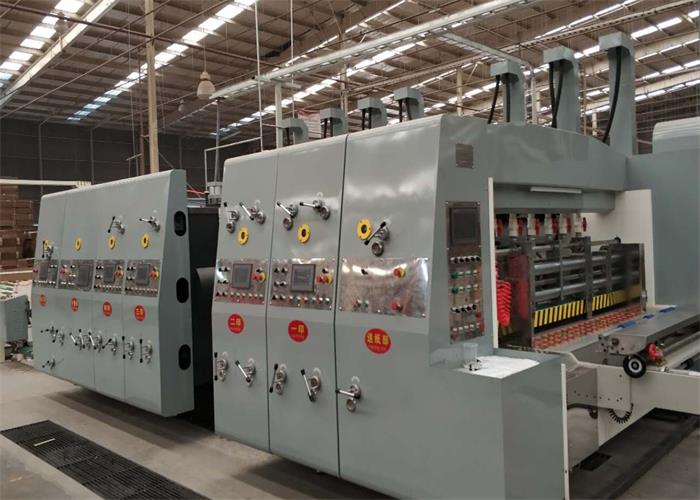

Automatic Lead Edge Feeder Flexo Printer Slotter Die Cutter Machine For Carton Box

Main configuration

1. Fully computer Control Vacuum Suction Corrugated Box Making Machine.
2. All position adjustments controlled by PLC, encoder tracking
3. Carton machine computer centralized control, Rexroth Bosch Group servo drivers is for option.
4. Remote after service can be realized
5. Each unit equipped with man-machine interface, easy to operate, accurate on adjustment.

feeding Unit

1. Apply lead edge feeding patent technology, feed all types of corrugated paper board accurately and speedily lx707
2. Paper feeding servo motor drive double rubber roller, without transmission mechanical error, upper roller is wrapped with wearable rubber, air pressure adjustment function to prevent cardboard from deformation, and to keep feeding accurate.
3. Vacuum lead edge feeding, air volume, air pressure adjustable to fit paper size
4. De-dust device removes dust and dirt from printing surface, and enhance printing quality
5. No backlash transmission technology, reduce transmission error to the minimum
6. No need self-circulating lubrication system, achieve environment friendly production
7. Feeding clearance motorized adjustment, touch screen control

Printing Unit

1. Forme roller and pressure roller made of high quality alloy steel, with grinded and chrome plated surface lx707
2. Dynamic and static balancing make steadily running
3. Hanging forme, make installation easy and quick
4. Forme changing both foot switch, and/or PLC panel control (forward / backward run)
5. Anilox roller auto lifting synchronous with paper feeding system (In feeding anilox roller press down whereas in stop, it release)
6. Independent servo motor driving, to eliminate cumulate error of system
7. Carton making machine printing phase automatic adjustment by man-machine interface and servo drive
8. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
9. Carton machine ceramic anilox rollers, enclosed chamber doctor blade system, achieve 80-90 lines quality printing
10. Arc shaped, aluminum alloy chamber of doctor blade, raise anti-bending ability by 30%, ink reserves decreased by 20%; Lined with environmental protection fluorine layer, meet requirement of easy and non-stick cleaning
11. Carton making machine suck blower, roller sending, synchronous with pressure roller, over print precision ± 0.35mm lx707
12. Motorized adjust and digital display the forme roller transverse moves, up to 20 mm
13. Clearance between anilox roller and pressure roller automatic adjustment, encoder tracking and recording (Carton machinery Input data at PLC touching panel to make automatic adjustment)

Stacking Unit

1. Connection arm can be operated manually or automatically lx707
2. Tension of the driving belt of connection arm can be adjusted alone; Number of connection arms can be set at will
3. Stacking height: 1600 mm
4. Platform elevation and transmission motor has braking function, to prevent from down-slipping
5. A pneumatic controlled plate will pop-up to hold the coming substrate when the pre-set height reached
6. Anti slipping belt used in the transport bed, the stacker together with carton machine, corrugated box making machine.

Technical Parameters
