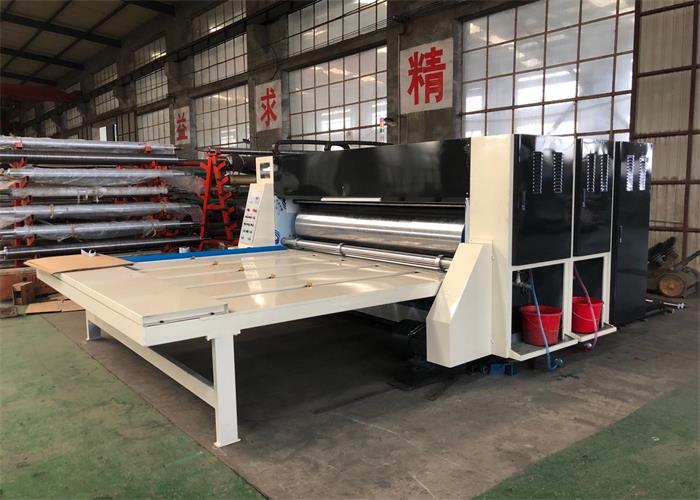

    Thickness 6mm Flexographic Box Printing Machine 380/415/440V Chain Type

    Ask Lasest Price
    Brand Name : Xinglong
    Model Number : XL-LT
    Certification : CE
    Price : Negotiation
    Payment Terms : D/P, Western Union, MoneyGram, Western Union
    Supply Ability : 5sets/month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Thickness 6mm Flexographic Box Printing Machine 380/415/440V Chain Type

    Semi Automatic Carton Flexo Printing And Slotting Machine


    Description:

    1. Chain type hand move feeding cardboard
    2. Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately
    3. When machine stopped working ink roller can automatic separate with printing roller facer in order to protect it ,
    4. Ink roller have the separately turn device to prevent ink dried when machine stopped working
    5. Adopt pneumatic locking ,electric separation
    6. Ink supply by pneumatic diaphragm pump
    7. Main transmission gear made by 45 steel after high frequency quench
    8. Transmission part adopt sprinkle lubricating system ,ensure the machine precise and long use time .


    Technological parameter:


    Two colors Printing Slotting and Die-cutting machine
    ModelBA2300-410BA2300-480BA2600-410BA2600-480
    Machine inside width (mm)2300230026002600
    Max feeding paper size(mm)1200*21001450*21001200*24001450*2400
    Max effective printing size(mm)1200*19001450*19001200*22001450*2200
    Min coverage size(mm)350*500mm350*500mm350*500mm350*500mm
    Min slotting space(mm)190*50*190*50190*50*190*50190*50*190*50190*50*190*50
    125*125*125*125125*125*125*125125*125*125*125125*125*125*125
    Working speed30-50pcs/min30-50pcs/min30-50pcs/min30-50pcs/min
    Standard Thickness of printing plate6mm6mm6mm6mm
    Printing precision±0.5mm±0.5mm±0.5mm±0.5mm
    Thickness of cardboard1.2-9mm1.2-9mm1.2-9mm1.2-9mm
    Wall thickness40mm40mm40mm40mm
    45mm45mm45mm45mm
    50mm50mm50mm50mm
    Main motor powerAbout 6kwAbout 6kwAbout 6kwAbout 6kw
