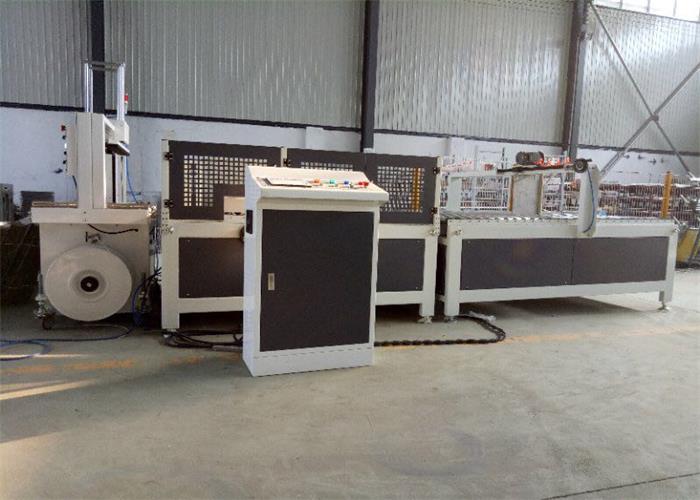

Automatic Corrugated Box Strapping Machine

Performance and Characteristics:

The strapping machine consists of three units. paper conveyer and steering unit,gather align unit and no-man power strapping unit.

This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery, electricity and gas.

Fast packing speed: PLC control, stable performance, compact packing time, faster.

Operating capacity:9-18 pieces/ min;

Working environment: the relative humidity is less than or equal to 90%, the temperature is 0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A);

The bandwidth is 5 mm - 9 mm, optionally; the tape reel specification: the inner diameter of the paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and the band width is 175-190 mm;

Bonding method: hot fusion;

The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent, the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg;

Air source pressure: 0.5-0.8MPa; roller material: stainless steel; roller diameter: 50mm, wall thickness: 1.2-1.5mm;

Transportation speed: 0 -50m / min;

Some electrical brands: PLC (Siemens), contactor (Siemens), thermal relay (Siemens), breaker (Siemens), frequency converter (Schneider), button (Schneider), two-bit self-locking knob (Schneider), urgent Stop button (Schneider), indicator lamp (Schneider), relay (Omron), power box (MeanWell)), touch screen (Taiwan)
