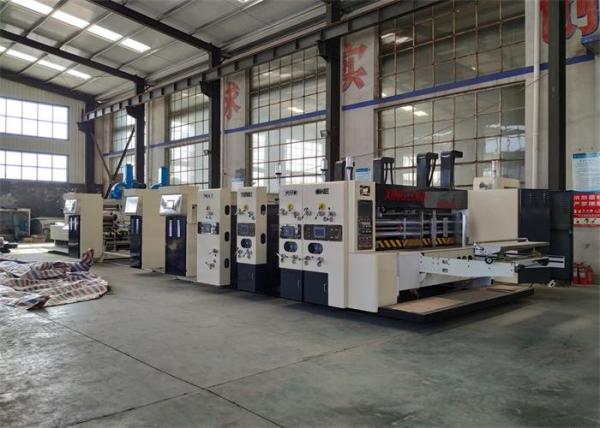

Automatic Printing Slotting Die Cutting Folder Gluer Carton
Production Line
Main technology Parameters
| Model | LD240-920 | LD220-1022 | LD200-1224 | LD180-1426 |
| Machine inside width (mm) | 2200 | 2400 | 2600 | 2800 |
| Max feeding paper siz(mm) | 900*2200 | 1000*2400 | 1200*2600 | 1450*2600 |
| Max effective printing size(mm) | 900*2000 | 1000*2200 | 1200*2400 | 1450*2400 |
| Min coverage size(mm) | 350*700 | 350*700 | 400*700 | 400*700mm |
| Min slotting space(mm) | 190*50*190*50 | 190*50*190*50 | 190*50*190*50 | 190*50*190*50 |
| Design speed | 240pcs/min | 220pcs/min | 200pcs/min | 180pcs/min |
| Working speed(pcs/min) | 220pcs/min | 200pcs/min | 160-180pcs/min | 150-160pcs/min |
| Standard Thickness of printing plate | 6mm | 6mm | 6mm | 6mm |
| Printing precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm |
| Thickness of cardboard | 1.2-9mm | 1.2-9mm | 1.2-9mm | 1.2-9mm |
| Wall thickness | 50mm | 50mm | 50mm | 50mm |
| Main motor power | About 30kw | About 30kw | About 30kw | About 30kw |
Features:
l Designed according to high request and reliable function,
humanization operation that can setting, revision, implement,
changing and memories in short time, and display data.
l All of drive rollers are made of high quality steel, hard chrome
plated the surface with grinded.
l Drive gears adopt high quality steel with heat treatment with
grinded.
l The main drive roller adopt keyless connect, decrease the
connection gap, ensure printing precision.
l Engineer oil automatic balance device, keep the oil level equal
in each unit.
l Phase adopts electric digital adjusting with "automatic zero
return" function(options: PLC control touch screen)
l Feeding type use lead edge or kick feeding.
l Main motor is VFD.
(1). Feeding unit
l Adopts lead edge feeding system. Adjust wind volume according on
cardboard bending degree to ensure feeding paper smoothly.
l Main motor start protecting device, when the machine units not be
clocked, machine can't run.
l Double feeding rubber roller, the rubber roller has slot for
prevent the overlarge pressure.
l Front feeding rubber roller with air cylinder cushioning device,
feeding accurately and stable, will not destroy the hardness of the
cardboard when the feeding space is small.
l The side baffles adopt electric control. The back baffle box be
adjusted by motorized, the front baffles space adopts motorized
adjustment.
l With brush dust-remove device with dust-absorption blower. Can
adjust the wind volume accord the cardboard size.
l Electric control units separation with warming belt, to ensure
worker safe.
l Electric counting device set production quantity, when complete
the production automatically warm( if use touch screen control,
adjust quantity though touch screen directly)
(2). Printing unit
l The printing roller adopts stemless steel pipe, the surface be
grinded, hard chrome plated, balance correction, running smoothly.
l With quickly change printing plate device, when load or unload
printing plate, foot switch electric control roller run clockwise
or anticlockwise.
l The feeding roller, impression roller, rubber roller and anilox
roller space adjusted by self-locking device.
l Printing and phase fixed device, pneumatic brake. When units
separating or cleaning, braking mechanism limit gear running, keep
original gear's position.
l The anilox roller adopt automatic pneumatic up-down device( when
feeding, anilox roller down automatically according to order, when
stop, anilox roller lift according order)
l Adopts pneumatic diaphragm pump inking, automatically recycle,
water cleaning.
l With "clean printing plate" function, after washing the printing
plate, the printing roller will back to the original printing
position.
l Option: Ceramic Anilox roll & doctor blade
(3). Slotting unit:
l With pre-creasing system, after pre-creasing cardboard not easy
destroy.
l Carton box height adjusting adopts PLC and digital control. (or
adopt PLC and touch screen adjusting)
l Slotting phase adopt PLC and digital adjustment in 360 degree
whatever running and stop(or use PLC and touch screen adjusting)
l Slotting pedestal and creasing wheels horizontal moving adopt
electric synchronous adjustment.( PLC with touch screen adjustment
as an option, enter the size of the carton, automatically adjust)
l Creasing space and knife roller space adjusting adopts
self-locking device.
l The carton height adjustment with anti-collision device for the
slotting knives, will not destroy the machine.
l Every slotting knife pedestals movement with anti-collision
device(digital type)
l Slotting knives width is 7mm, good quality material with heat
treatment, grinding, saw tooth knives. Double type cutting knives,
sharp-edged and high precision.
l Option: The hole and handle hold die , the slotting rings.
(4). Die-cutting unit:
l The rubber roller adopts mechanical screw type horizontal
movement, the movement distance is 40mm.
l The phase of die roller adopt digital adjustment in 360 degree
whatever running and stop.
l The space adjustment between rubber roller and die roller adopt
self-locking device, and with air cylinder adjust quickly in large
range, reduce rubber destroy, prolong rubber use life.
l Feeding roller spaces adjusting adopts self-locking device.
l Speed compensation device can make the rubber roller slipping
follow die roller, thereby, the rubber surface speed controlled by
knife die. So that the carton shape is same as knife die.
Equipped with rubber repair device, the rubber can be used after be
repaired.
ZXJ-1000 Folder Gluer inline
ZXJ-1000 carton folder gluer is specially designed and manufactured
for inline with printing, slotting, folding, gluing and stacking,
it features automatic conveying, glue applying, folding, with
multi-stages auto control. Adopt PLC control, touch screen
interface, pre-storage and management of orders, Its high-speed
production capacity, fast order-changing and good stability can
meet the short lead times required for our carton customers.
| Model | ZXJ-1450 |
| Max design speed | 200pcs/min |
| Max sheet size(mm) | 1450*2400 |
| Min. sheet size(mm) | 350*750mm |
| Suitable for cardboard | 3 ply , 5 ply corrugated cardboard |
| Belts | Polyvinyl acetate emulsion PVA |
