Middle Speed Printing Slotting Die-cutting & Stacker Machine

Main Technology parameters

Performance and Characteristics:

• The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching,die cutting and so on.
• Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
• All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
• Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
• The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
• The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
• Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen.
• The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

Main motor is VFD, working stability, low power consumption.

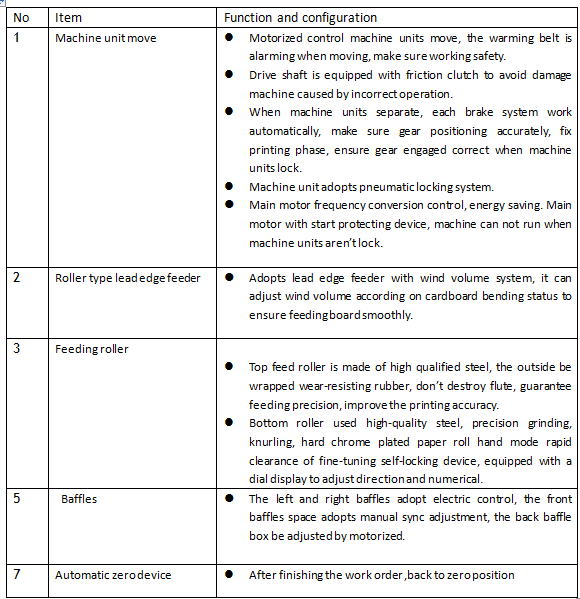

1. Feeding unit

2. Printing unit

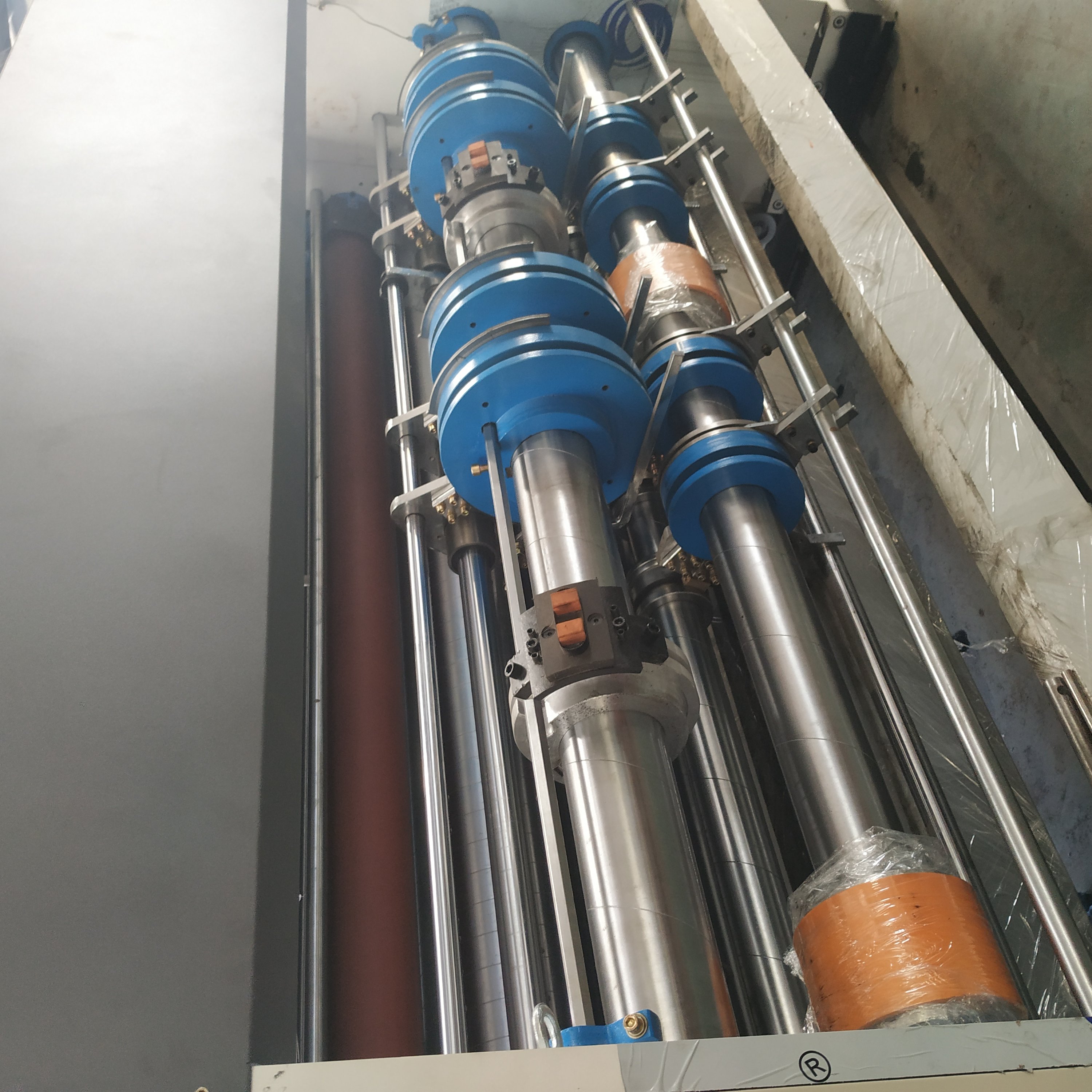

3 .Slotting unit

4. Die cutting unit

l Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.

• Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber
• When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
• Adopt high-quality Germany Depair rubber pad.
• The roller is made of cast steel, with a wall thickness of 30 mm,
• Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
• Electrically adjusted phase die-cutting position
• Include waste paper discharging device
