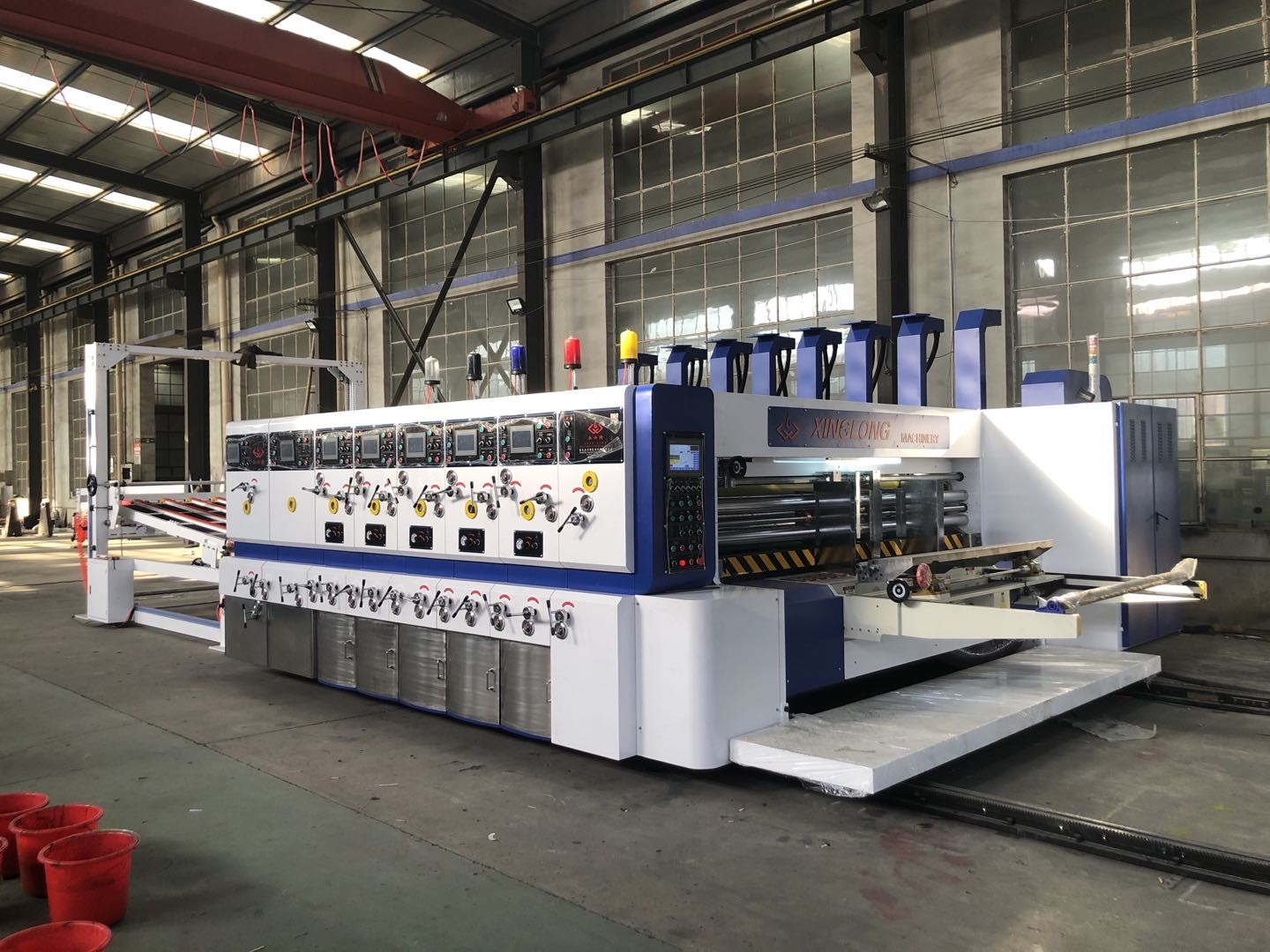

Automatic Carton Pizza Box Making Machine Printing Slotting Machine
Main Technology parameters
Model | AYKM1224 |
Machine inside width (mm) | 2600 |
Max feeding paper siz(mm) | 1200mm*2400mm |
Max effective printing size(mm) | 1200mm*2200mm |
Min coverage size(mm) | 350mm*700mm |
Max effective die cutting size(mm) | 1200*2350mm |
Design speed(pcs/min) | 150pcs/min |
Working speed(pcs/min) | 120 pcs/min |
Standard Thickness of printing plate | 4-6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-9mm |
Wall thickness | 40mm |
Main motor power | 15kw |
Lpi of anilox roller | 250 |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing,
slotting, creasing, trimming, corner cutting, punching, die
cutting, stacking and so on.
Automatic Carton Pizza Box Making Machine Printing Slotting Machine
is designed according to high request and reliable function,
humanization operation, it can setting, revision, implement,
changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome
plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with
grinded, adopt cross slip system connect each gear, keep gear fix
position, ensure transmission precision.
Automatic Carton Pizza Box Making Machine Printing Slotting Machine
The main drive roller adopt keyless connect, decrease the
connection gap, ensure printing precision.
Automatic Carton Pizza Box Making Machine Printing Slotting Machine
adopts sealed spray lubrication for gear system, engineer oil
automatic balance device; keep the oil level equal in each unit.
Phase adjustment adopt PLC control with touch screen
The machine adopts lead edge (or kick feeding), low demand for the
cardboard, fast.
Main motor is VFD, working stability, low power consumption.
All Printing units adopt vacuum transfer
Automatic Carton Pizza Box Making Machine Printing Slotting Machine
Adopt double shell, beautiful and generous, reduce noise
